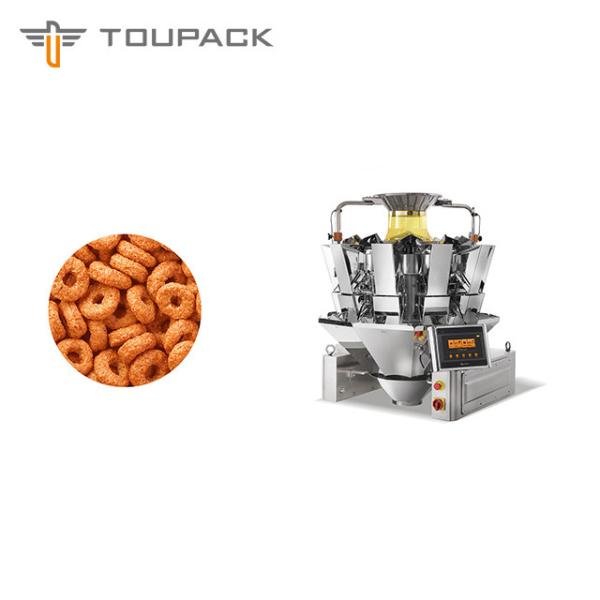

Stainless Steel 304 14 Multi Head Weigher for puffed food such as potato chips Banana Chips etc
Applications:
Applicable for weighing of all types of small-sized / dosed granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.
Main Function & Features:
1. Professional digital weighing module for high precision and good stability.
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
10. Modular design of control system for easy maintenance and cost-saving.
11. Specifically designed for small granular products with high precision and fast working speed.
Specifications:
| Model | TY-A-M14-1; TY-A-P14-1 |
| Max. Weighing (one hopper) | 5-200g |
| Accuracy | x (0.5) |
| Min. Scale Interval | 0.1g |
| Max. Speed | 120 WPM |
| Hopper Volume | 0.8L/0.5L |
| Control System | MCU / PLC |
| HMI | 7’’ / 10’’ color touch screen |
| Power Supply | AC220V ±10% 50HZ / 60HZ, 2KW |
| Packing Dimension | 1,370(L)*1,060(W)*1,105(H)mm |
| Package weight | 240kg |
Details:
