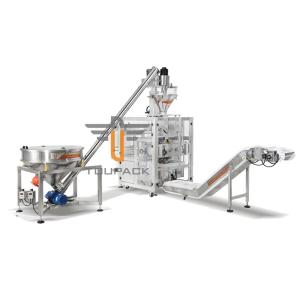

Name: Powder Packaging Spiral Screw Bucket Elevator Conveyor For milk powder
Brand: TOUPACK
Price: 1 USD

Brand Name : TOUPACK

Model Number : Inclined Conveyor

Place of Origin : Guangdong Zhongshan China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 30 set per month

Delivery Time : 10-25 working days

Packaging Details : wooden case

Body Material : SUS304

Conveyor Type : screw blade

Silo Volume : 100 L / 200 L

Conveying Angle : Standard: 45° or per requirement (from 30°~60°)

Power Supply : single / 3 phase 220V/380V 50HZ/60HZ, 1.1KW

Conveying Height : Standard: 1,850mm or per requirement (from 1,000 to 5,000mm)

Contact Now

Continuous Feeding Spiral Screw Conveyer For Powder Packaging System

Application:

Applicable for conveying of powdered products in food, medical, chemical or plastic industry.

Features:

1. Good sealing with no powder leakage.

2. Able to combine with other machines to make full use of the space.

3. Rational structure with silo and screwing device independent from each other for easy installation.

4. Simple maintenance, easy disassembly and convenient for cleaning.

Technical Parameters:

Contents	Specifications
Body Material	SUS304
Conveying Type	screw blade
Power Supply	single / 3 phase 220V/380V 50HZ/60HZ
Power Consumption	0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW
Silo Volume	100L / 200L
Conveying Speed	2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h
Conveying Angle	Standard: 45° or per requirement (from 30°~60°)
Conveyor Pipe Diameter	102mm, 114mm, 141mm, 159mm, 168mm, 219mm
Conveying Height	Standard: 1,850mm or per requirement (from 1,000 to 5,000mm)
Machine Dimension(mm)	custom-made per requirement
